Cyclopentane and Isobutane in Refrigerator Foam
Refrigerator manufacturers rely on Cyclopentane and Isobutane as key blowing agents in polyurethane foam systems. These two hydrocarbons play complementary roles, ensuring optimal insulation, foam performance, and energy efficiency.
In modern refrigeration manufacturing, insulation performance is crucial for energy efficiency and product reliability. Polyurethane (PU) foam is the most widely used insulation material in refrigerators and freezers. To produce high-quality PU foam, manufacturers rely on hydrocarbon blowing agents, among which Cyclopentane and Isobutane are the most common. Understanding the differences and synergy between these two agents is essential for optimal foam performance.

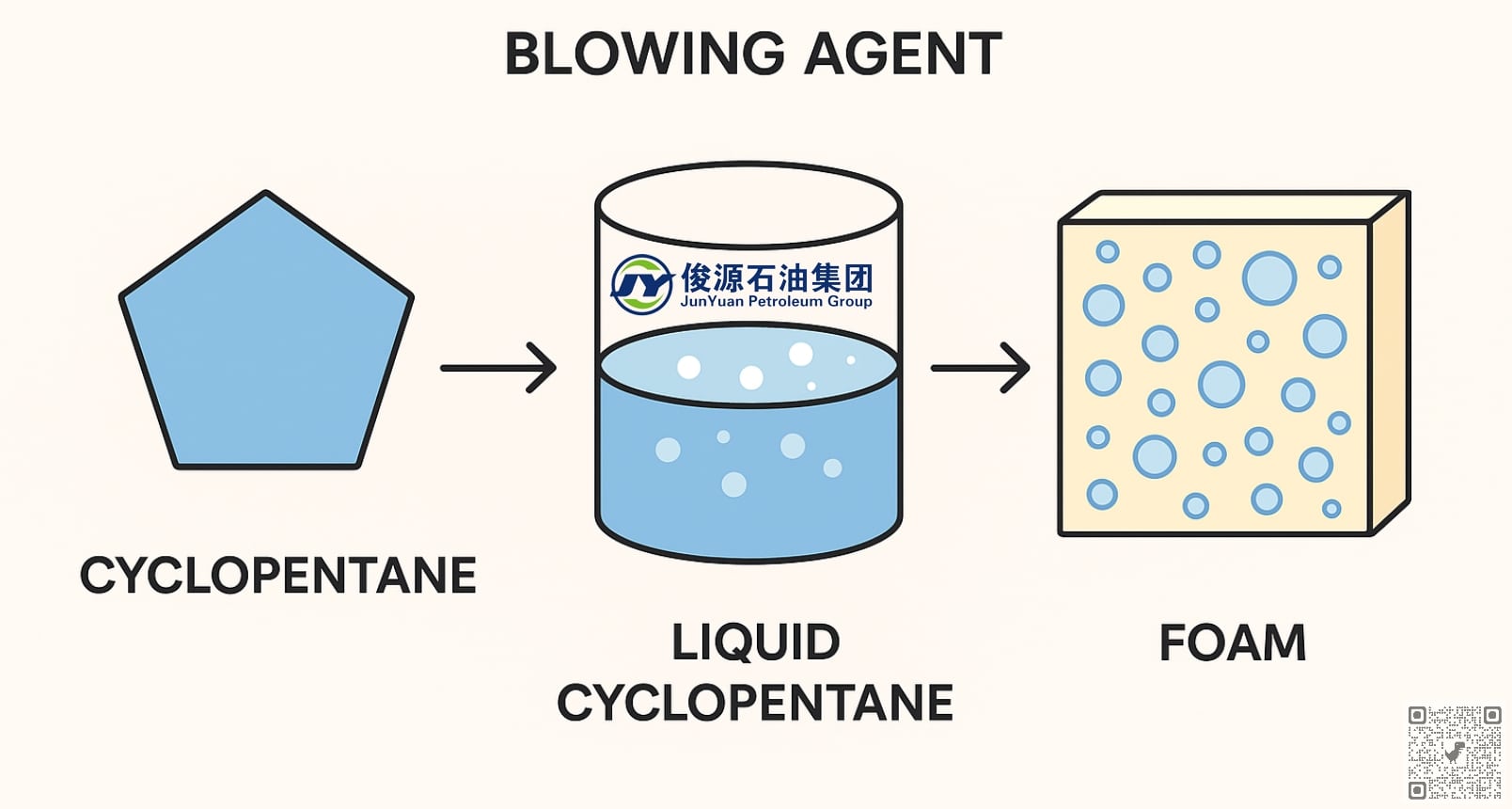

Cyclopentane: The Primary Blowing Agent
Cyclopentane has become the preferred primary blowing agent for PU foam due to its excellent thermal insulation properties and high closed-cell structure. Its relatively high boiling point (~49ยฐC) allows controlled foam expansion. Advantages include:
- Superior insulation: High closed-cell content reduces heat transfer.
- Stable foam structure: Produces uniform foam density with minimal shrinkage.
- Safety and handling: Higher flash point makes it safer in large-scale industrial applications.
Isobutane: The Complementary Agent
Isobutane acts as a co-blowing agent. Its lower boiling point (~-12ยฐC) and higher volatility bring benefits:
- Improved flowability: Reduces polyol blend viscosity, allowing better filling of cavities.
- Enhanced foam uniformity: Consistent cell size and density across insulation panels.
- Process optimization: Speeds up foam expansion and reduces production time.
Some manufacturers also use Isobutane as a refrigerant (R600a), but in foam production, it serves as an auxiliary agent. Typical proportion ranges from 20% to 30% relative to Cyclopentane.
Why They Cannot Replace Each Other
Although both Cyclopentane and Isobutane are hydrocarbons used in foaming applications, they are not interchangeable:
- Boiling point differences: Cyclopentane ensures stable expansion; Isobutane evaporates too quickly alone.
- Foam quality: Isobutane alone leads to low closed-cell content and uneven foam.
- Safety considerations: Isobutane is more flammable, requiring stricter handling.
- Solubility and compatibility: Cyclopentane dissolves better in polyols for uniform foam.
The Balance of Performance and Safety
Using Cyclopentane as the main blowing agent and Isobutane as a co-blowing agent achieves:
- High thermal insulation for energy-efficient refrigerators
- Optimized foam processing and consistent quality
- Enhanced safety and controlled volatility
- Cost-effectiveness with reduced material waste
For more details about refrigeration and insulation materials, visit ASHRAE or read about foam technology at Halonix.
Conclusion
In summary, Cyclopentane and Isobutane play distinct but complementary roles in refrigerator PU foam production. Cyclopentane ensures excellent insulation and foam stability, while Isobutane improves flowability, uniformity, and process efficiency. Manufacturers require both to achieve high-quality, energy-efficient refrigeration products, rather than substituting one for the other.
Cyclopentane: The Primary Blowing Agent
Cyclopentane has become the preferred primary blowing agent for PU foam due to its excellent thermal insulation properties and high closed-cell structure. Its relatively high boiling point (~49ยฐC) allows for controlled foam expansion during the production process. The advantages of Cyclopentane in refrigerator insulation include:
- Superior insulation: High closed-cell content reduces heat transfer, improving energy efficiency.
- Stable foam structure: Produces uniform foam density with minimal shrinkage.
- Safety and handling: Higher flash point compared to other hydrocarbons makes it safer in large-scale industrial applications.
Cyclopentaneโs excellent solubility in polyol components of PU systems ensures that the foam expands uniformly, filling all cavities of the refrigerator body and forming consistent insulation layers.
Isobutane: The Complementary Agent
While Cyclopentane provides the primary foaming action, Isobutane is often used as a co-blowing agent. Isobutane has a much lower boiling point (~-12ยฐC) and higher volatility. Its inclusion in PU foam formulations brings several benefits:
- Improved flowability: Reduces the viscosity of the polyol blend, allowing better filling of complex cavities.
- Enhanced foam uniformity: Helps achieve consistent cell size and density across the insulation panel.
- Process optimization: Speeds up foam expansion and reduces production time.
In addition, some manufacturers also use Isobutane as a refrigerant (R600a), but in foam production, it acts primarily as an auxiliary agent. The proportion of Isobutane is carefully controlled, typically ranging from 20% to 30% relative to Cyclopentane, depending on the foam formulation and production conditions.
Why They Cannot Replace Each Other
Although both Cyclopentane and Isobutane are hydrocarbons used in foaming applications, they are not interchangeable:
- Boiling point differences: Cyclopentaneโs higher boiling point allows stable expansion, while Isobutane would over-expand or evaporate too quickly if used alone.
- Foam quality: Using only Isobutane leads to low closed-cell content, higher shrinkage, and uneven foam structure.
- Safety considerations: Isobutane is more flammable due to its lower flash point, requiring stricter handling conditions.
- Solubility and compatibility: Cyclopentane dissolves better in polyols, ensuring proper foam formation, whereas Isobutane alone cannot achieve the same uniformity.
Therefore, PU foam systems in refrigerators are designed to leverage the synergy between Cyclopentane and Isobutane rather than treating them as substitutes.
By using Cyclopentane as the main blowing agent and Isobutane as a co-blowing agent, refrigerator manufacturers achieve:
- High thermal insulation: Energy-efficient refrigerators and freezers.
- Optimized foam processing: Smooth production and consistent quality.
- Enhanced safety: Controlled volatility and reduced fire risk.
- Cost-effectiveness: Efficient use of materials and reduced waste.
This complementary approach ensures that foam panels fill all cavities, maintain structural integrity, and provide long-lasting insulation performance.
Conclusion
In summary, Cyclopentane and Isobutane play distinct but complementary roles in refrigerator PU foam production. Cyclopentane ensures excellent insulation and foam stability, while Isobutane improves flowability, uniformity, and process efficiency. Manufacturers require both to achieve high-quality, energy-efficient refrigeration products. Understanding their synergy helps explain why icebox producers continue to source both chemicals rather than substituting one for the other.
