In the global edible oil industry, efficiency and purity are the two most critical benchmarks for success. While several extraction methods exist, solvent extraction using n-Hexane remains the primary choice for large-scale operations involving soybeans, rapeseed, and sunflower seeds.
Why n-Hexane is the Industry Standard
The dominance of n-Hexane in oilseed processing is driven by its specific chemical properties and its performance in a high-volume industrial environment:
- Superior Oil Recovery: n-Hexane is highly effective at dissolving triglycerides. It typically allows processors to extract more than 99% of the oil available in the seed, far surpassing the capabilities of mechanical pressing alone.
- Optimal Boiling Point: With a boiling point of approximately 69°C (156°F), n-Hexane is volatile enough to be easily evaporated from the oil and meal. This allows for nearly 100% solvent recovery and reuse, significantly lowering production costs.
- Preservation of Quality: The relatively low temperature required for solvent recovery prevents the thermal degradation of the oil, ensuring that the flavor, color, and nutritional antioxidants remain intact.
- Selective Extraction: It acts as a selective solvent, focusing on the oil fractions while leaving behind essential proteins and fibers in the meal, which can then be used for high-quality animal feed.
Safety and Environmental Standards

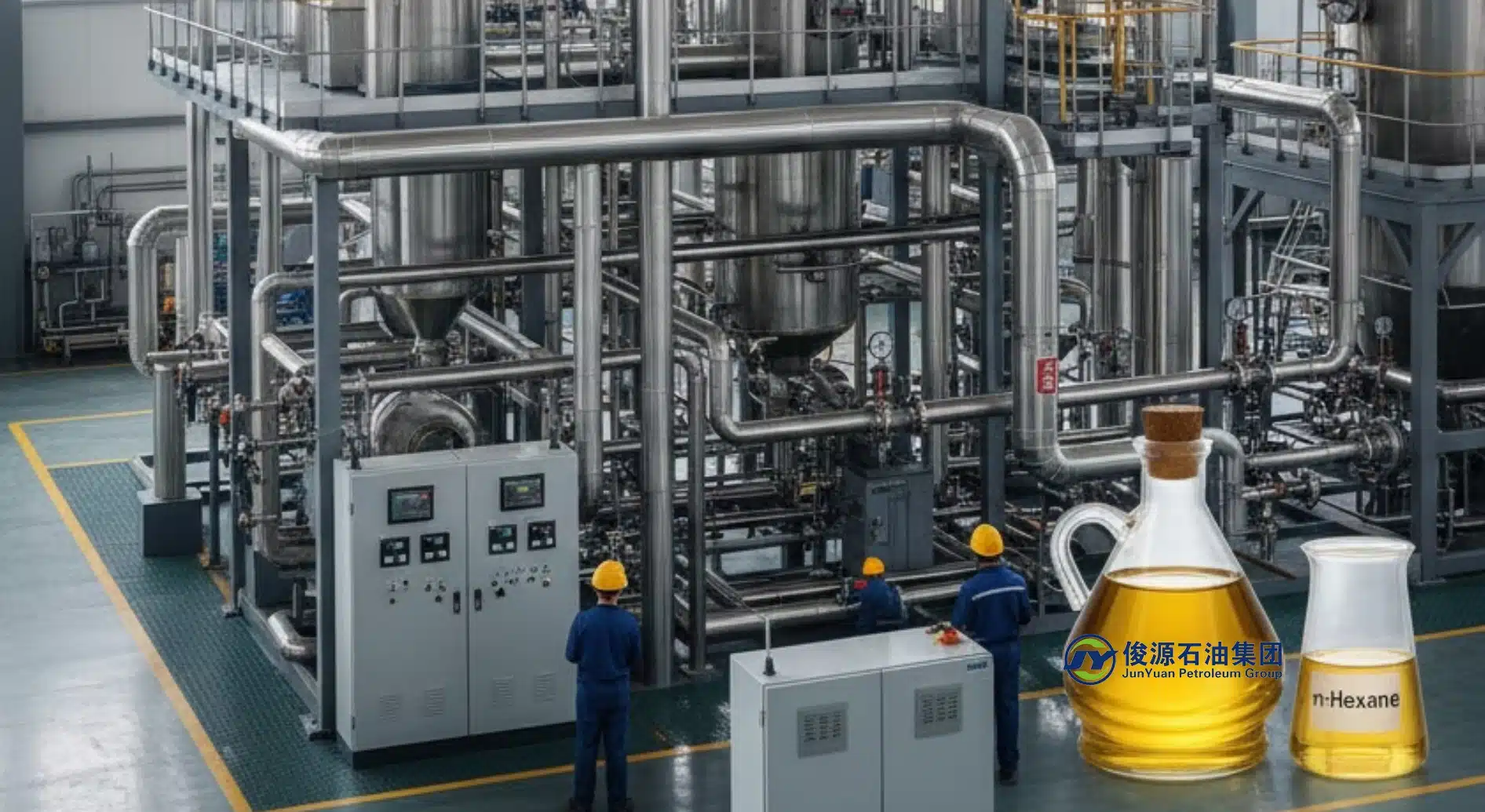

Modern extraction plants utilize closed-loop systems designed to capture and recirculate the solvent. By using high-purity, food-grade n-Hexane and implementing advanced Leak Detection and Repair (LDAR) programs, manufacturers can ensure both consumer safety and environmental compliance.
The continued use of n-Hexane represents a balance of proven chemistry and economic viability, supporting the global supply chain for essential fats and oils.
Keywords: Edible Oil Extraction, n-Hexane, Solvent Extraction, Food Processing Technology, Oilseed Crushing, Industrial Chemistry.
Comparison of Extraction Methods: n-Hexane vs. Mechanical Pressing
| Feature | n-Hexane Solvent Extraction | Mechanical Pressing (Expeller) |
| Oil Yield | Very High (up to 99.5%) | Moderate (approx. 85-90%) |
| Residual Oil in Meal | Less than 1% | 5% to 10% |
| Processing Temperature | Low to Moderate (approx. 69°C) | High (Heat generated by friction) |
| Scale of Operation | Large-scale Industrial | Small to Medium-scale |
| Operating Cost | Lower (due to solvent recycling) | Higher per ton of oil produced |
| Primary Application | Soybeans, Rice Bran, Sunflower | Cold-pressed oils, Coconut, Olive |
Technical Breakdown
The efficiency of n-Hexane is largely due to its low latent heat of vaporization ($335.3 \text{ kJ/kg}$ at boiling point). This allows for rapid separation of the solvent from the oil (miscella) and the meal (desolventizing) using minimal energy compared to other chemical solvents.
While mechanical pressing is often preferred for “virgin” or “cold-pressed” specialty oils to avoid chemical contact, n-Hexane is the undisputed standard for the high-volume commodity market where maximizing yield and minimizing waste is essential.
Frequently Asked Questions about n-Hexane Extraction
What is n-Hexane used for in oil extraction? n-Hexane is a chemical solvent used to dissolve and separate oil from oilseeds such as soybeans, sunflowers, and rapeseeds. It is preferred in industrial settings because of its high efficiency in removing nearly all available oil from the plant material.
Is n-Hexane safe for edible oil production? Yes. While n-Hexane is used during the extraction phase, it is entirely removed during the desolventizing and refining processes. Modern food-grade processing ensures that any residual traces are well below established safety limits set by global health authorities.
Why is n-Hexane preferred over other solvents like Ethanol? n-Hexane has a lower boiling point and a lower latent heat of vaporization than ethanol. This makes it easier and cheaper to recover and reuse within a closed-loop system. Additionally, n-Hexane does not dissolve non-oil components like sugars, resulting in a cleaner crude oil.
What happens to the seed material after extraction? Once the oil is removed, the remaining material is known as “oil meal.” Because n-Hexane is highly selective, it leaves the proteins and fibers intact, making the meal a high-value, protein-rich ingredient for animal feed.
Is solvent extraction environmentally friendly? Modern extraction plants operate as closed-loop systems. This means that nearly all the n-Hexane used is captured, condensed, and recycled back into the process, minimizing emissions and reducing chemical waste.
Key Takeaways
- n-Hexane oil extraction is the industry standard for extracting oil from oilseeds due to its high efficiency and purity.
- It allows for superior oil recovery, with over 99% extraction, and preserves the quality of the oil.
- Modern extraction facilities use closed-loop systems to ensure safety and environmental compliance, capturing and recycling n-Hexane.
- Compared to mechanical pressing, n-Hexane extraction offers higher oil yields and lower operating costs.
- The remaining meal after extraction is rich in proteins and suitable for high-quality animal feed.
